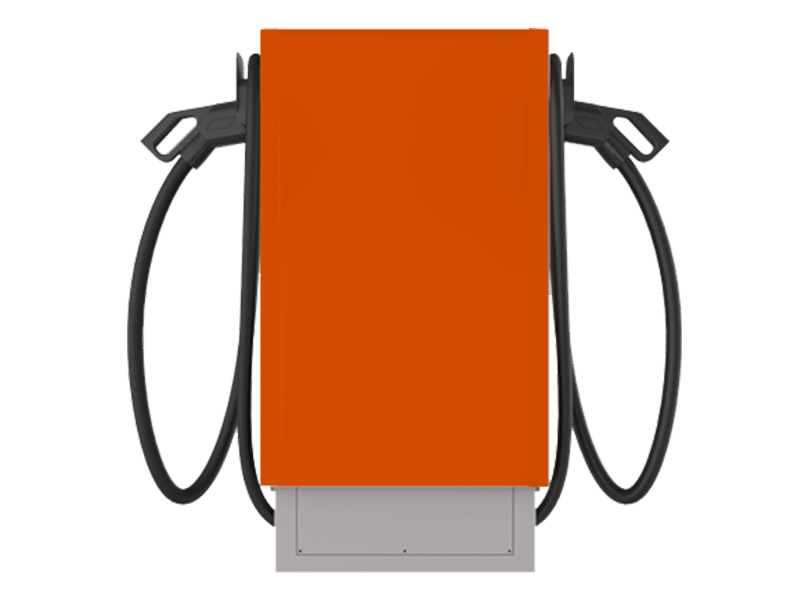

Tuncmatik Mini DC Charger fast charger offers DC fast charging in places where the electrical infrastructure is not sufficient. Compared to normal AC devices (as they are limited to the vehicle’s internal charger (OBC), 30kW models offer up to 4 times faster charging and 60kW models offer up to 8 times faster charging. In this way, it is an effective solution for places whose infrastructure is not sufficient for large devices such as 180kW. Tunçmatik Mini DC Charger offers fast charging, allowing electric vehicle drivers to get back on the road as soon as possible. Thanks to this feature, it has become an excellent choice for short stops, highway rest stops and gas stations.

Other features;

• IP54 protection, IK10 vandal-proof housing and IK8 touch screen
• Remote software update
• Remote diagnostics functionality simplifies the data collection and analysis process
• Standard charging capacity up to 300A
• Standard output voltage range between 200-1000VDC
• Standard CCS2 socket (optional CCS1 and CHAdeMO socket possibility)
• Easy payment with QR Code and RFID
• GSM, 3G, 4G, LTE and Ethernet (RJ45) Connection
• OCPP 1.6J communication protocol
• Integrated voltage suppressor
• Ground fault including DC leakage protection

Usage Areas:

Houses/Apartments, Villas, Vehicle fleets, Public charging stations, Shopping Malls, Parking lots, Gas stations, Entertainment centers, Highway rest facilities, Short stop locations, Business Centers, Short stop locations, Sites, University Campuses

LOGIN
Phase 3P+N+PE
AC Input Power 64 kVA / 93A @400V 50Hz
Voltage Range 400 VAC or 380 VAC ±10%
Frequency 50 / 60 Hz
THDi ≤ 5%
Network TN-S. TN-C, TN-C-S, TT (external RCD required)
EXIT
Power Factor ≥ 0.99
DC Output Voltage 200-1000 VDC
Yield ≥ 93%
Max. Current (CCS Cables) 150A
Max. Current (CHAdeMO Cables) 125A
Hibernate Power < 35W
Precharge Current < 1A
Inrush Current < 100A
Leakage Current 0.8 mA
SOCKET AND CABLE
Socket Type CCS2 (CCS1 & CHAdeMO optional), Dual Socket
Number of Vehicles Supported 2
Cable Length 5m (Optional 6-7m)
SYSTEM FEATURES
Energy Measurement Energy meter that calculates income
Protection Including overcurrent, overvoltage, undervoltage, integrated overvoltage protection, ground fault DC leakage protection
Overvoltage Category Type II
Emergency Button Yes
Cellular Communication GSM, 4G, (Optional LTE)
Communication Protocol OCPP 1.6J
User Authentication RFID, QR code
RFID Reader ISO/IEC 14443 A/B Mifare RFID reader
User Interface 7” Touch LCD Screen
DIMENSIONS & WEIGHT
W x D x H (mm) 660 x 218 x 1250
Weight (kg) 100
ENVIRONMENTAL
Operating Temperature -35 °C - 55 °C
Storage Temperature -40 °C - 70 °C
Humidity < 95% (Non-condensing)
Working Height Up to 2000 meters
Noise Level <50 dB
STANDARDS
Coding and Standards IEC61851-1 ed 3, IEC61851-23 ed 1, IEC61851-24 ed 1, IEC62196-2, IEC62196-2, IEC62196-3
Communication with Electric Vehicle DIN70121, ISO/IEC 15118 ed 1, CHAdeMO 1.2
Electromagnetic Compatibility EN 61000-6-3
